RIBAO BC-55 Mixed Denomination Bill Money Counter Machine
- Brand: RIBAO
- Product SKU: WK16014
- Availability: instock
- Delivery: Within 3 working days
.
÷
1G of memory can support almost unlimited currency quantity.
÷
Reliable Counterfeit Detection.
÷
The software can be updated through a USB memory stick, PC
interface or online.
÷
The firmware software can be developed based on the data collected
in field through a USB or LAN port.
÷
Jam Removal and Sensor Cleaning
The RIBAO BC-55 is the most intelligent and
reliable multi-currency banknote discriminator that applies two CIS and runs on
the Linux system.
This machine applies on advanced image processing technology in
order to recognize currency and discriminate denominations.
The use of this detection technology ensures reliable acceptance
of genuine notes and accurate stops of fake notes.
With a 3.5 inch TFT touch screen and a user-friendly interface,
all kinds of users can finish their daily cash processing jobs very easily.
|
Hopper Capacity |
600pcs |
|
Stacker Capacity |
200pcs |
|
Currency Support |
10 Currencies (AED/USD/EUR/GBP/BHD/KWD/OMR/QAR/SAR/INR) |
|
Display |
Color TFT-LCD (3.5 inch),Touch Screen |
|
Suitable Note Size |
Length: 100mm-175mm |
|
Width: 50mm-90mm |
|
|
Suitable Note Thickness |
0.05mm-0.12mm |
|
Speed (pcs / min) |
800,1000,1200 (SDC MIX mode) |
|
800,1000 (serial number reading mode) |
|
|
RAM |
1G |
|
Batch Number |
5-200pcs |
|
Connectivity |
USB for data collection and software upgrade |
|
RS232 for PC communication |
|
|
RJ 12 for external display |
|
|
WLAN for data collection and software upgrade in batch |
|
|
SD card for data storage |
|
|
Counterfeit Detection |
Ultraviolet detection (UV) |
|
Magnetism detection (MG) |
|
|
Metal thread detection (MT) |
|
|
Infrared image detection (IR) |
|
|
CIS image detection (double sides) |
|
|
Counting modes |
Piece counting (CNT) |
|
Value countingï¼ËSDC,
MIXï¼Ⱐ|
|
|
Auto recognition |
|
|
Multi-currency mix counting |
|
|
Batch (5-200) |
|
|
Accumulation |
|
|
Language Support |
Different language for user's selection |
|
Power Supply |
AC 220V 50Hz |
|
AC 110V 60Hz |
Compact: It is portable and takes up less space for
cashiers.
Accurate Counting: Excellent performance
counting both brand new and worn out notes.

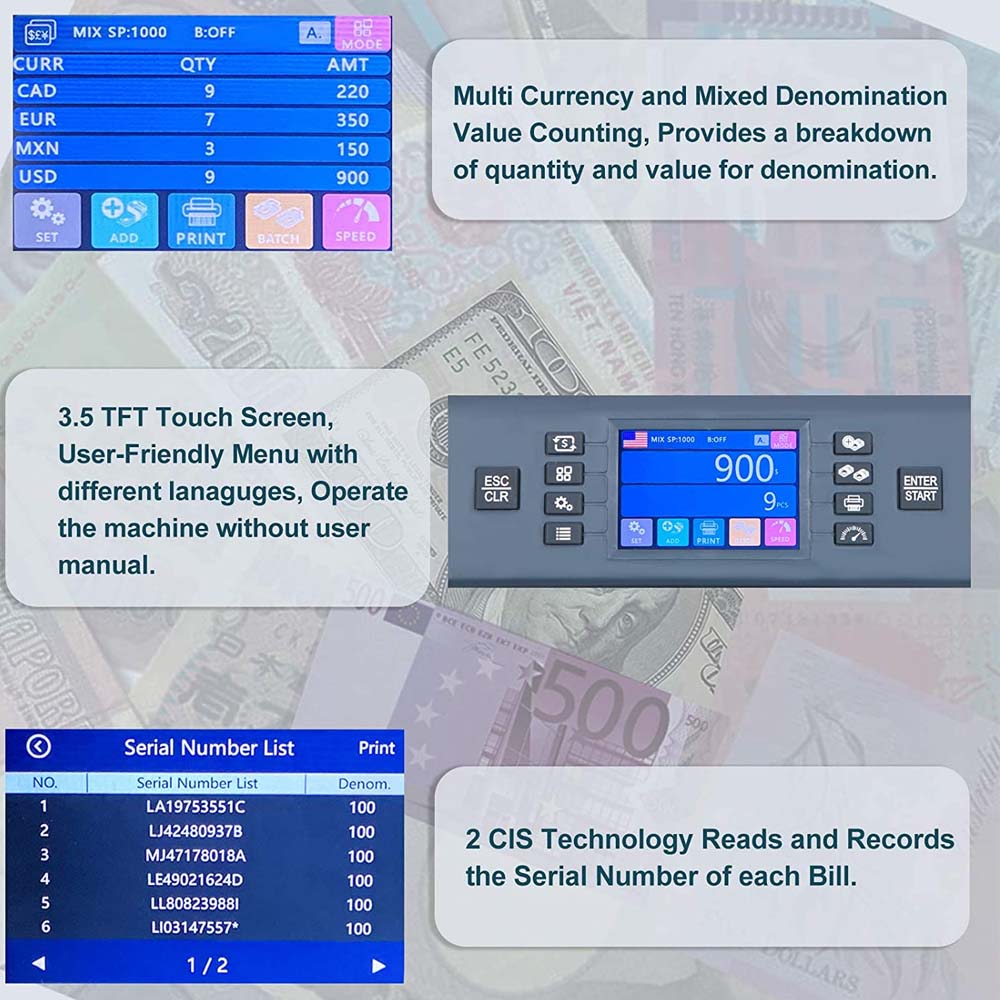

TFT Screen: A 3.5 inch TFT touch screen
allows for greater visibility.
Multi currency Capability: 1G of memory can support
almost unlimited currency quantity.
Reliable Counterfeit Detection: Double
CIS provide R\B\G\IR images for detection. It can detect the notes by UV, MG,
MT, IR, CIS and serial number. There is also a super detection option that
uses UV transmission and full MG coverage.
User Friendly Interface: Very easily
understandable menu and interface makes the operation more smooth, customized
interface offers more options according to preference.
Read and Print By Serial Number: It can
read serial numbers from both sides, create a TXT format output and then prints
the serial number.
Software Updates: The software can be updated
through a USB memory stick, PC interface or online.
FW developing: The firmware software can
be developed based on the data collected in field through a USB or LAN port.
Jam Removal and Sensor Cleaning: It is
easy to open the passage from the rear side to clear jammed notes and clean the
sensors.
